THERMO coolant water pump is a brushless DC motor design with dry-running protection, over-current protection, blocked protection, over-voltage protection, under-voltage protection, reverse protection, constant power and over-temperature protection. Used for new energy vehicle, liquid cooled ultra-fast charger, engine cooling circulation, battery pack cooling system, EV charging pile cooling circulation etc.
Voltage :
12V DCMax Flow :
37L/minMax Head :
10.5MRated Power :
45WSpeed :
CustomizationAmbient Temperature (℃） :
-40~120℃Medium Temperature (℃） :
-40~120℃Customized :
Acceptable12V DC Battery Coolilng Electric Vehicle Water Pump Manufacturer
Coolant Pump is a key component of electric automobile cooling system & preheating system, like battery cooling, engine cooling, charging pile cooling etc, usually 12v or 24v electric antifreeze pump, THERMO antifreeze transfer pump. Its a device that circulates coolant within the cooling system to regulate the temperature.
The feature of THERMO Coolant Circulation Pump EWP040F is:
l Compact and small size with light weight 350g
l Long lifetime ≥20,000 Times
l Lower noise ≤45dB@1m
l Dry-running protection
l Over-current protection
l Blocked protection
l Over-voltage protection
l Lower-voltage protection
l Over-temperature protection
l Constant power
l Reverse protection
l PWM Control & FG Signal Customization
l Liquid temperature range from -40~120℃, Ambient temperature range from -40~120℃
l Static seal design to prevent leakage
Typical Applications:

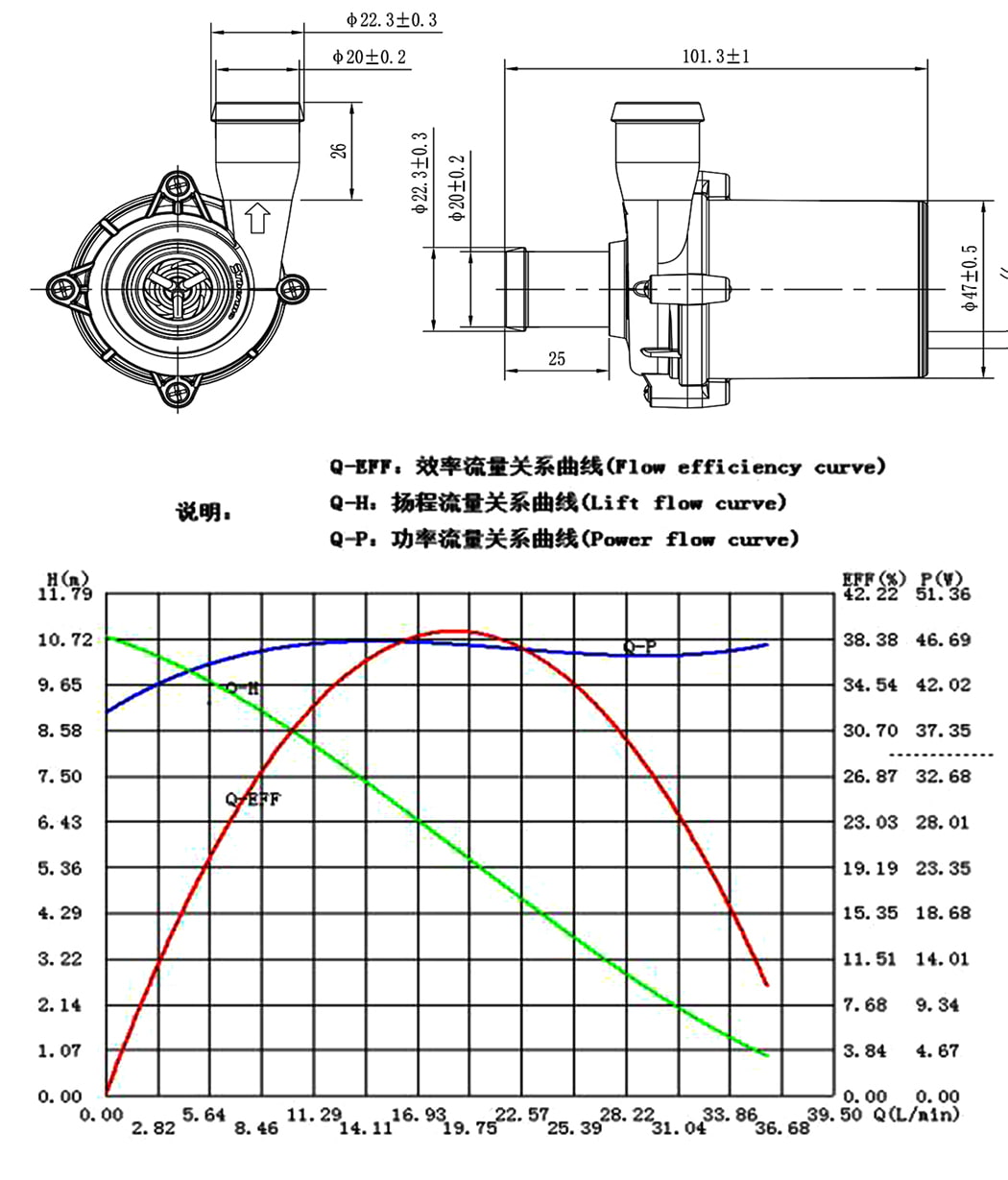

| EWP040F | |||
| SPECIFICATION | FEATURE | ||
| Rated Voltage | 12V DC | Ambient Temperature | -40~120℃ |
| Rated Current | 3.75A | Medium Temperature | -40~120℃ |
| Max Power | 45W(1±10%） | Noise | ≤45dB@1m |
| Max Flow | 37L/min±10% | Lifetime | ≥20,000H |
| Max Head | 10.5M ±1 | Weight | 350g |
Thermo Pumps win a good reputation in the market after several years. Its with widely applications including: bidet toilet, water heated blanket, water heater, gas boiler electric vehicle, liquid cooled ultra-fast charging, computer cooling, motorcycle, aquarium, ice maker, water dispenser, coffee machine, beverage machine, dishwasher and others kitchen appliances.
A car water pump also known as an electric vehicle water pump, is a device used in automotive engines to circulate coolant throughout the cooling system. Instead of being driven by a belt connected to the engine, an electric water pump is powered by an electric motor.
A water pump is an essential component of a car's system. Its primary is to circulate, or antifreeze, throughout the engine and radiator to keep the engine temperature.
A water pump is an essential component of a car's system. Its primary is to circulate, or antifreeze, throughout the engine and radiator to keep the engine temperature.
In electric vehicles (EVs), the battery pack plays a crucial role in providing power to the electric motor. To ensure optimal performance and longevity of the battery, it needs to be kept within a specific temperature range. This is typically achieved through an active thermal management system, which includes a water pump for battery cooling.
In an electric vehicle (EV), the water pump serves the purpose as in a conventional internal combustion engine (ICE) vehicle—to circulate coolant through the system to cool the components. However, the water pump in an EV operates differently since there is no engine-driven mechanical system.
An automotive electric water pump is a device used in vehicles to circulate coolant or water through the engine's cooling system. Electric water pumps offer several advantages over their mechanical counterparts, including increased control, improved efficiency, and reduced load on the engine.
An electric vehicle water pump, also known as a coolant pump, is a component used in electric vehicles to circulate coolant fluid through the cooling system. Its primary function is to remove heat from the electric vehicle's components, such as the batteries, motor, and power electronics, to maintain optimal operating temperatures.
An vehicle water pump, also can be called a coolant pump, is a component used in electric vehicles to circulate coolant fluid through the cooling system. Its primary function is to remove heat from the electric vehicle's components, such as the batteries, motor, and power electronics, to maintain optimal operating temperatures.
